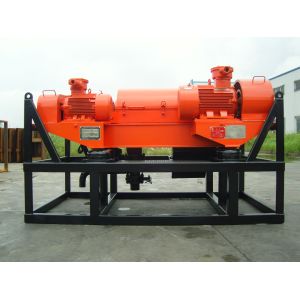

45KW 55kW Drilling Mud Centrifuge 1537Fr Drilling Fluid Centrifuge

Name: 45KW 55kW Drilling Mud Centrifuge 1537Fr Drilling Fluid Centrifuge
Brand: XBSY
Price: 1 USD

Buy cheap 45KW 55kW Drilling Mud Centrifuge 1537Fr Drilling Fluid Centrifuge product

Place of Origin : Sichuan，China

Brand Name : XBSY

Certification : USE 18000,USE14000，EAC，CE，ISO9000

MOQ : 1

Packaging Details : Ply Wood Box,iron box

Delivery Time : 1-2 months

Payment Terms : TT

Supply Ability : 1000

Price : Price Negotiable

Model : LW520 × 1290-N

Drive Type : Power Frequency

Drum Inner Diameter (mm) : 520

Drum Working Length (mm) : 1290

Maximum Drum Speed (r/min) : 2500

Drum Working Speed (r/min) : 2100 / 2300

Pusher Differential Speed (r/min) : 25

Contact Now

Cost-Effective Drilling Centrifuge: 45/55kW Motor & 1537 Fr Force

Duplex stainless steel drum (520 mm diameter) resists abrasion from silica-rich formations. Tungsten carbide tiles protect conveyor blades, extending wear life to 8,000 hours. Vibration isolators ensure stability on uneven terrain, while corrosion-resistant coatings withstand marine environments.Achieve 30% lower operating costs versus VFD centrifuges. The direct-drive system eliminates frequency converter losses, and pulley adjustments require no specialized training. ROI: <8 months via reduced fluid waste and extended equipment lifespan. Compatible with screw/centrifugal feed pumps for flexible integration.

45KW 55kW Drilling Mud Centrifuge 1537Fr Drilling Fluid Centrifuge

Features
Constant Drum Speed - Can be changed by changing the drive pulley.
Easy to Operate and Maintain- Can be matched with different drum speeds and processing capacities according to the size of the drilling rig and actual demand.
Cost-saving - The centrifuge of choice for conventional drilling mud treatment.

Model	LW520 × 1290-N
Drive Type	Power Frequency
Drum Inner Diameter (mm)	520
Drum Working Length (mm)	1290
Maximum Drum Speed (r/min)	2500
Drum Working Speed (r/min)	2100 / 2300
Fr	1284 / 1537
Pusher Differential Speed (r/min)	25
Max. Capacity (m3/h) (Clearwater)	70
Rated Power (kW) (Main Motor)	45 / 55 kW
Rated Speed (r/min) (Main Motor)	1480 r / min
Rated Power (kW) (Auxiliary Motor)	15 kW
Rated Speed (r/min) (Auxiliary Motor)	970 r/min
Feeding Pump Model	Screw Pumps or Centrifugal Pumps
L * W * H (mm)	3280 × 1725 × 1780
Weight (kg)	4000
